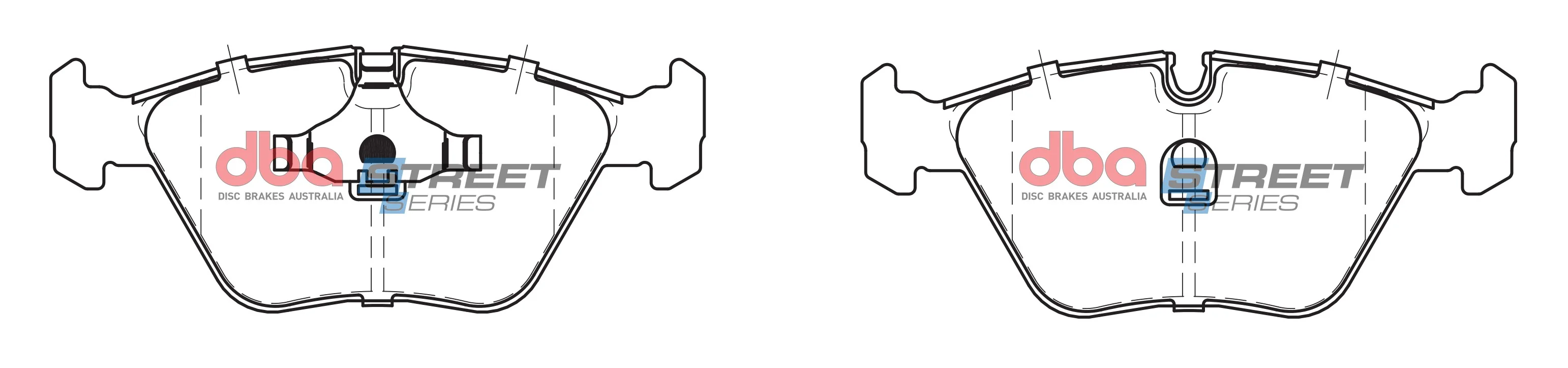

Part number: DB1131SS

STREET SERIES brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of STREET SERIES disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

text2

text3 DBA recommends STREET SERIES brake pads for everyday use application in passenger cars, SUVs and LightCommercial Vehicles.

DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

STREET SERIES part numbers are denoted by the suffix SS.

Features:

OE-style post-cured process for optimal braking performance over the pad life
Ceramic* formulation and copper-free (NSFI certified) for low dust emission & clean wheels
High-friction stripe for easy bedding-in
Application-specific NVH shims, slots and chamfers for less vibration and noise

* Check box label for applicability

Ideal for:

OE replacement & everyday use
Passenger cars & SUVs
Light commercial Vehicles
Use with DBA Street Series Disc Rotors

TECH SPECS

Primary FMSI

7284-D394
Set Contains

2 Inner Pads + 2 Outer Pads
Width [mm]

156.5
Height [mm]

63.5
Pad Thickness [mm]

19.3
Axle

Front
Weight [KG]:

2.1

Fitments:

Make	Model	Year	Variant	Category	Note	Parameter
BMW	5 Series (E34) 518	1988-1996	1.8 Saloon (1988-1996)	Front		Brake Caliper: ATE
BMW	5 Series (E34) 518	1988-1996	1.8 Saloon (1988-1996)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 518	1991-1997	1.8 Touring (1991-1997)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 520	1988-1996	2.0 Saloon (1988-1996)	Front		Brake Caliper: ATE
BMW	5 Series (E34) 520	1988-1996	2.0 Saloon (1988-1996)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 520	1991-1997	2.0 Touring (1991-1997)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 524	1988-1991	2.4 TD (1988-1991)	Front		Brake Caliper: ATE
BMW	5 Series (E34) 525	1988-1996	2.5 (1988-1996)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 525	1991-1996	2.5 TD Saloon (1991-1996)	Front		Brake Caliper: ATE
BMW	5 Series (E34) 525	1991-1996	2.5 TD Touring (1991-1996)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 530	1988-1996	3.0 (1988-1996)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 535	1988-1992	3.5 (1988-1992)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	5 Series (E34) 540	1992-1996	4.0 (1992-1996)	Front	Brake Disc: DBA971	Brake Caliper: ATE
BMW	7 Series (E32) 730	1987-1994	3.0 (1987-1994)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	7 Series (E32) 730	1987-1994	3.0 L (1987-1994)	Front	Brake Disc: DBA971	Brake Caliper: ATE
BMW	7 Series (E32) 730	1992-1994	3.0 218BHP V8 (1992-1994)	Front	Brake Disc: DBA974	Brake Caliper: ATE
BMW	7 Series (E32) 735	1987-1994	3.5 (1987-1994)	Front	Brake Disc: DBA971	Brake Caliper: ATE
BMW	7 Series (E32) 740	1992-1994	4.0 (1992-1994)	Front	Brake Disc: DBA971	Brake Caliper: ATE
BMW	7 Series (E32) 750	1987-1991	5.0 (1987-1991)	Front	Brake Disc: DBA971	Brake Caliper: ATE
BMW	M-Roadster/Coupe (Z3)	1998-2003	3.2 (1998-2003)	Front	Brake Disc: DBA984	Brake Caliper: ATE
BMW	M3 E36	1992-1996	3.0 (1992-1996)	Front	Brake Disc: DBA984	Brake Caliper: ATE
BMW	M3 E36	1996-2000	3.2 (1996-2000)	Front	Brake Disc: DBA984	Brake Caliper: ATE
BMW	M3 E46	2000-2007	3.2 (2000-2007)	Front	Brake Disc: DBA2850	Brake Caliper: ATE
BMW	M3 E46	2004-2007	3.2 CSL (2004-2007)	Front		Brake Caliper: ATE
BMW	M5 E34	1988-1989	3.5 315BHP (1988-1989)	Front		Brake Caliper: ATE
BMW	M5 E34	1989-1991	3.5 315BHP (1989-1991)	Front		Brake Caliper: ATE
BMW	M5 E34	1991-1994	3.8 340BHP (1991-1994)	Front		Brake Caliper: ATE
BMW	Z3	1998-2003	3.2 M 325BHP (1998-2003)	Front	Brake Disc: DBA984	Brake Caliper: ATE
BMW	Z4 E85	2006-2009	3.2 M 343BHP (2006-2009)	Front		Brake Caliper: ATE
BMW	Z4 E86	2006-2008	3.2 M 343BHP (2006-2008)	Front		Brake Caliper: ATE
BMW (ALPINA)	Roadster S (E85)	2004-2005	3.3 (2004-2005)	Front	Brake Disc: DBA2855	Brake Caliper: ATE
WIESMANN	MF 3	1997- 2000	3.2 (1997- 2000)	Front		Brake Caliper: ATE
WIESMANN	MF 30	1993-1996	3.0 231BHP (1993-1996)	Front		Brake Caliper: ATE
